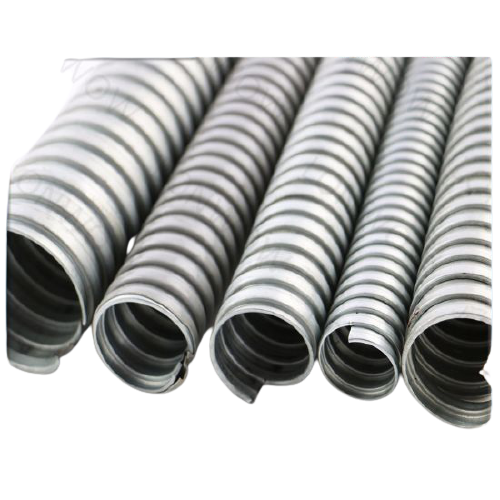

Galvanized Steel Flexible Conduit
This type of conduit is design to provide high mechanical strength or higher flexibility or where high temperature are experienced. This Galvanized Steel Flexible Conduit is completely metallic and therefore can be used when a low fire hazard specification is required. This type of system is an economical choice for a wide variety of commercial and industrial applications.
Application :
- Areas related to sparks and heat (Welding, Foundries etc.)
- For oven/furnace applications.
- Office blocks and under floor wiring.
- Under floor applications for floor boxes/computers.
- Utilized for connecting machines to control instrumentation, Metro Stations, CCTV Cameras, and Elevators etc.
- Utilized as the best mechanical shield for insulated wires and electrical cables that are functional in typical atmospheric climate.
Construction :

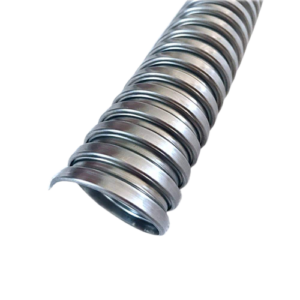

- Galvanized steel strip which has been spiral wound into a flexible conduit.
Specification :
- Highly Flexible.
- High Mechanical Power/Strength
- Implicit Low Fire Risk Item.
- IP Rating: IP-40, IP-55.
Working Temperature :
- Min. -40° C to Max. +300° C.
Color :
Product Table :
| Galvanized Steel Flexible Conduits |
| Sr. No. |
Part Number in mm |
Internal Diameter in mm |
Outer Diameter in mm |
Min. Bending Radius in mm |
Coil Length(Metre/Ft) |
| 1. |
SFFC-10 |
7.00 |
10.0 |
16 |
25-30-50 |
| 2. |
SFFC-12 |
10.00 |
13.5 |
19 |
25-30-50 |
| 3. |
SFFC-16 |
13.00 |
16.5 |
23 |
25-30-50 |
| 4. |
SFFC-20 |
17.00 |
20.5 |
28 |
25-30-50 |
| 5. |
SFFC-25 |
21.50 |
25.0 |
32 |
25-30 |
| 6. |
SFFC-32 |
28.00 |
32.0 |
50 |
15-25 |
| 7. |
SFFC-40 |
37.00 |
40.5 |
70 |
15-25 |
| 8. |
SFFC-50 |
47.00 |
50.5 |
80 |
10-25 |
| Galvanized Steel Flexible Conduits |
| Sr. No. |
Part Number in inch |
Internal Diameter in mm |
Outer Diameter in mm |
Min. Bending Radius in mm |
Coil Length(Metre/Ft) |
| 1. |
SFFC-12 |
12.50 |
15.50 |
26 |
15-25-30 |
| 2. |
SFFC-16 |
16.00 |
19.00 |
30 |
15-25-30 |
| 3. |
SFFC-20 |
20.00 |
23.00 |
34 |
15-25-30 |
| 4. |
SFFC-25 |
25.00 |
28.00 |
42 |
15-25-30 |
| 5. |
SFFC-32 |
32.00 |
36.50 |
65 |
15-25 |
| 6. |
SFFC-38 |
38.00 |
41.50 |
75 |
10-15 |
| 7. |
SFFC-50 |
50.00 |
53.50 |
82 |
10-15 |
| 8. |
SFFC-63 |
63.00 |
66.50 |
118 |
7.5 |
| 9. |
SFFC-75 |
75.00 |
79.00 |
154 |
7.5 |
| 10. |
SFFC-100 |
100.00 |
110.00 |
190 |
7.5 |
